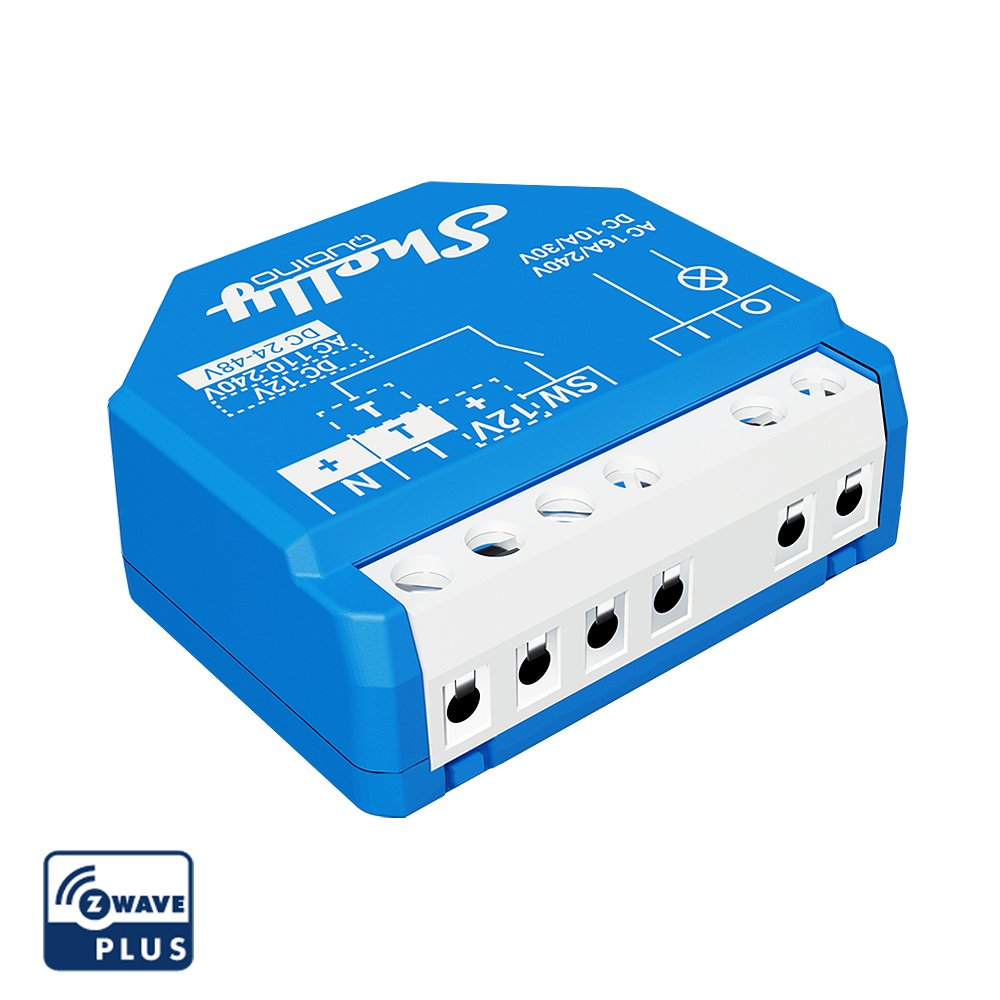

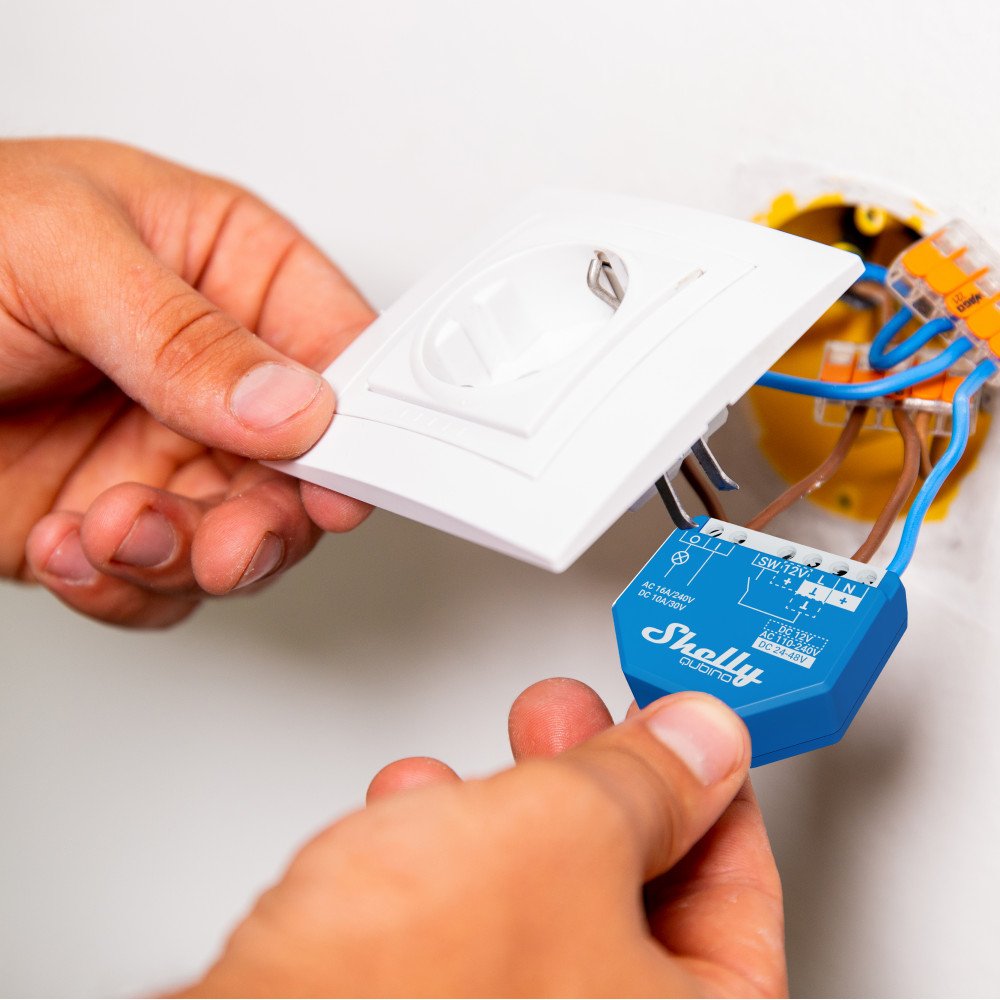

Controller Shelly Qubino Wave 1

Short description

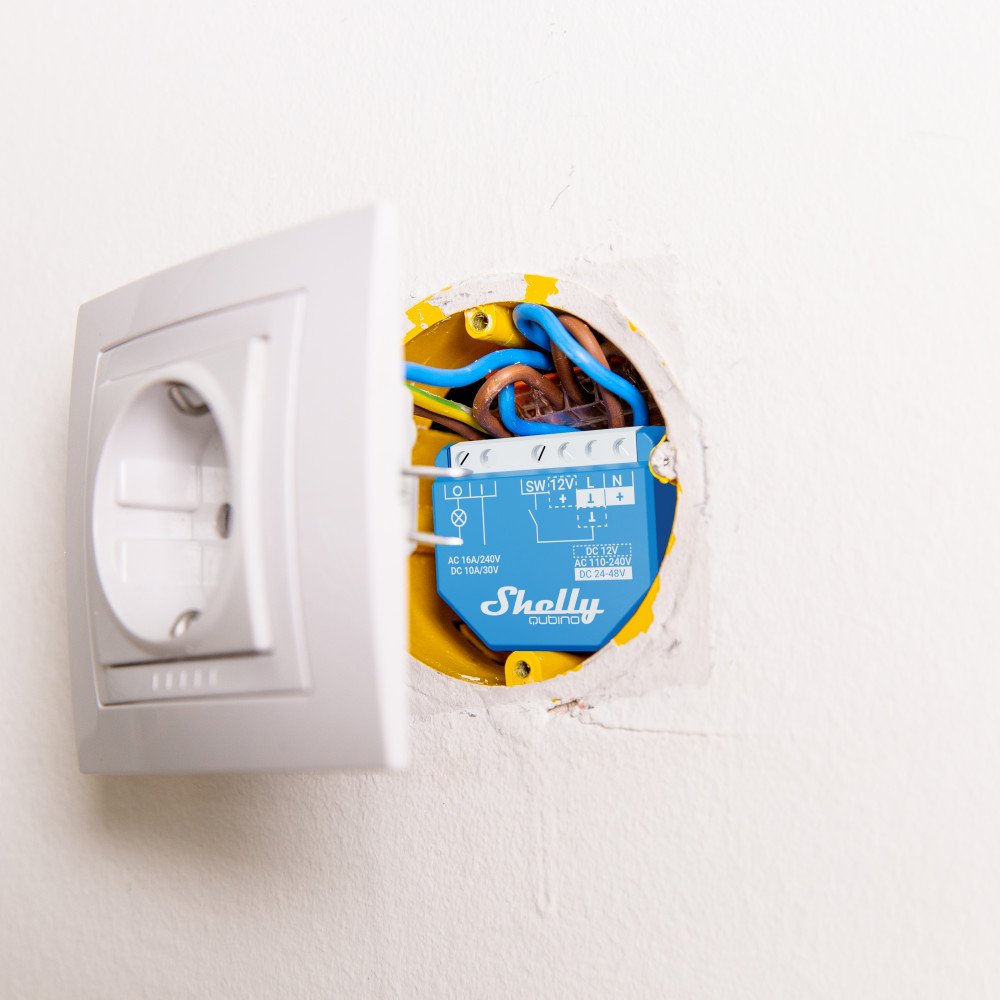

The device controls the on/off function of a single electrical device, such as a light bulb, ceiling fan, infrared heater, electric locks, garage door, irrigation system, etc. The output contact is potential-free (dry contact), so various power loads (up to 16 A) can be connected to the Device. It is compatible with buttons and switches (by default).

A switch/button is connected to the input terminal SW (SW1).

If SW (SW1) is configured as a switch (by default), each switching of the switch will change the state of output O (O1) to the opposite - on, off, on, etc. If SW (SW1) is configured as a button in the device settings, each pressing of the button will change the state of output O (O1) to the opposite - on, off, on, etc.

A switch is connected to the input terminal SW (SW1)

If SW (SW1) is configured as a switch (by default), each switch toggle will change the state of output O (O1) to the opposite - on, off, on, etc.

• To change the switch position once: Change the state of output O (O1) to the opposite state and send a command to the associated devices of groups 2 and 3 (see the "Z-Wave association" section).

The switch-monument is connected to the input terminal SW (SW1)

If SW (SW1) is configured as switch memory, then:

• Switching to a closed switch-memory contact: Change the state of output state O (O1) to the on state and send a command to the associated devices of groups 2 and 3 (see the section "Z-Wave association")

• Open switch memory contact: Change the output state O (O1) to Off state and send a command to the associated devices of associated groups 2 and 3 (see section "Z-Wave Association")

Button connected to input terminal SW (SW1)

If SW (SW1) is configured as a button in the device settings, each press of the button changes the output state O (O1) to the opposite - on, off, on, etc.

• 1x click : Change the output state O (O1) to the opposite and send a command to the associated devices of groups 2 and 3 (see section "Z-Wave association")

• 2x click : if the delay between the first and second click is less than 500 ms, it is interpreted as a double click. Send the command to the associated devices (regulators, blinds,….) in the associated groups 2 and 3 (see section "Z-Wave Association")

• Stop : sends a command to associated devices in associated group 3 (see section "Z-Wave association")

• Release : sends a command to the associated devices of group 3 (see section "Z-Wave association")
