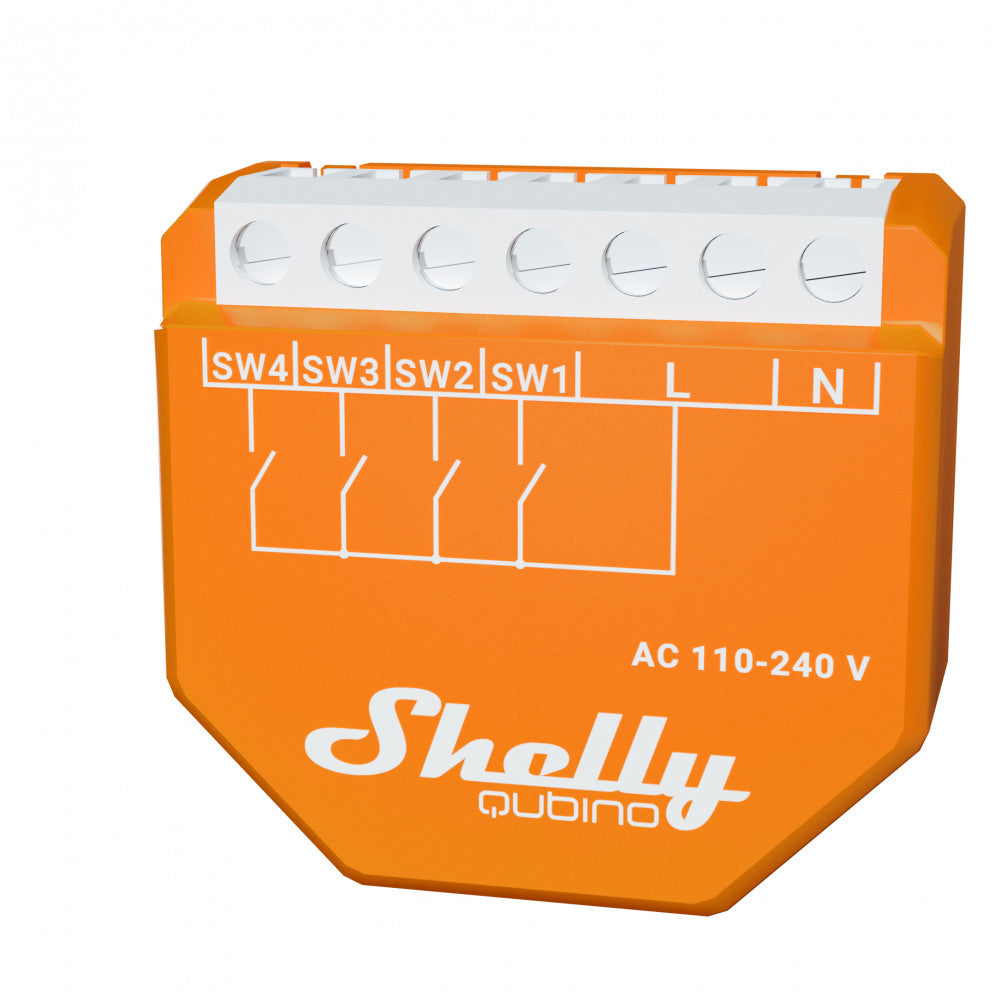

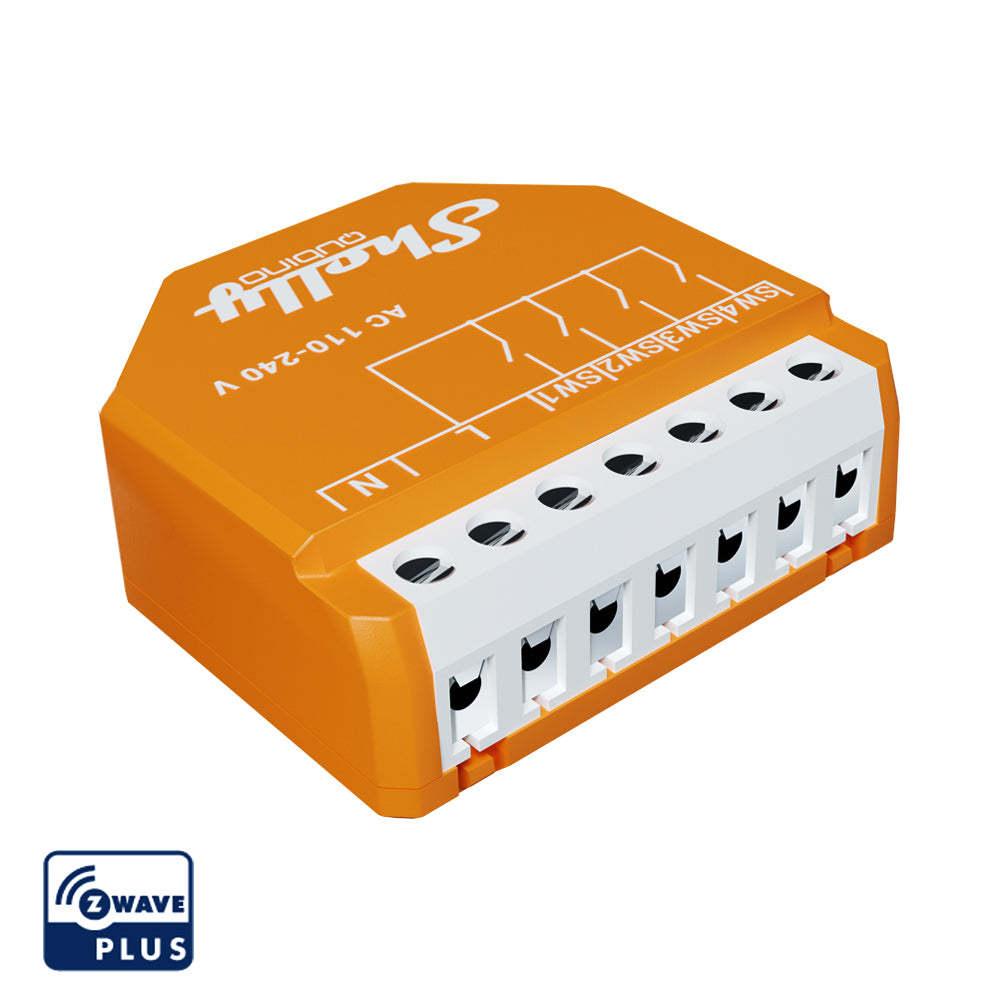

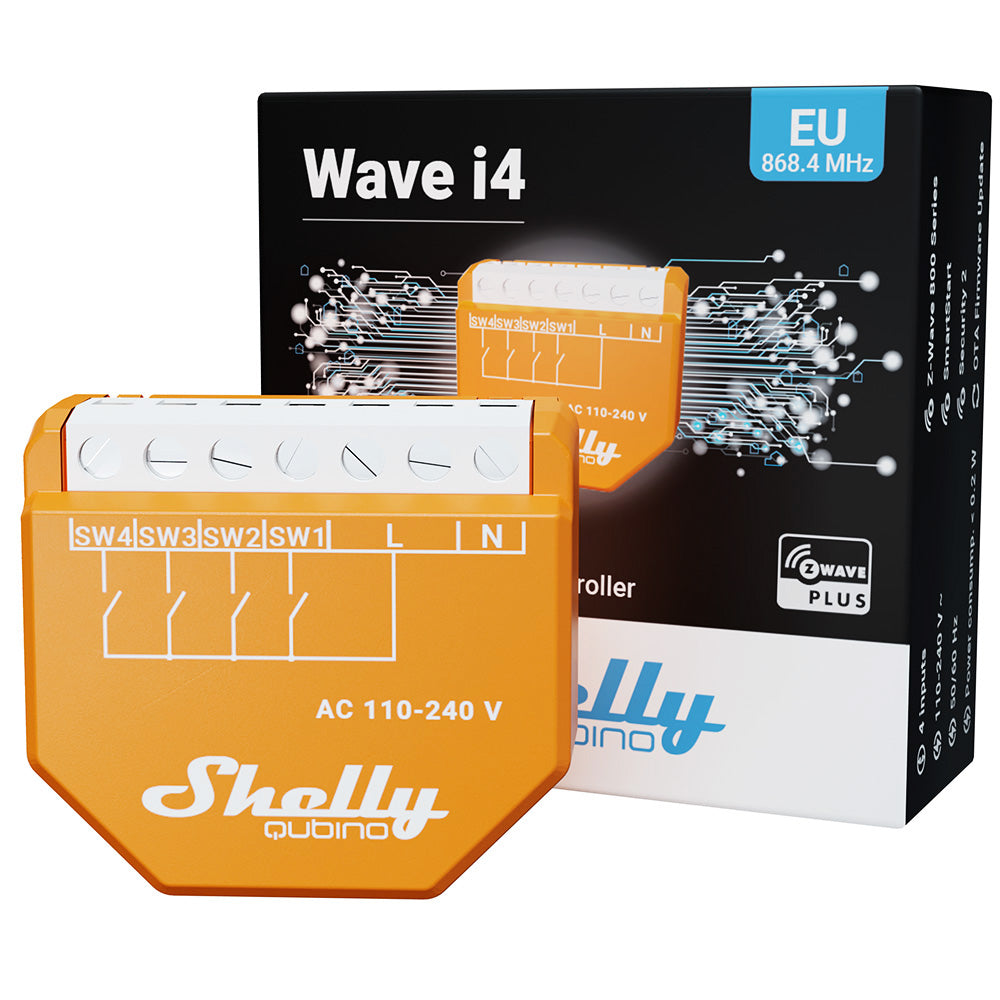

Controller Shelly Qubino Wave i4

Short description

The device is a 4-digital input module (110-240 V AC) that controls other devices in the Z-Wave network. It allows you to manually turn scenes on or off with a switch/button.

Switch/button connected to input terminal SW1

The device supports a central class of scene commands and when the button is pressed once, pressed twice, held and released, it transmits a scene message along with the scene number (1, 2, 3 or 4)

NOTE: Switch type not supported for enabling center stage notifications

The button is connected to input terminal SW1

If SW1 is configured as a push button :
Scene number = 0X01

• Short press : Sends a message about the central scene “Key pressed 1 time=0x00” with scene number 0X01 and sends a command to associated devices in associated groups 4 (see section Z-Wave association ).

• Press briefly 2 times : The central scene message “Key pressed 2 time=0x00” is sent.

• Press and hold : The central scene message “Key held down =0x02” is sent and a command is sent to the 5 associated devices of the associated group (see the Z-Wave association section).

• Release : The central scene message “Key released =0x01” is sent and the Send command is sent to associated devices in the associated group 5 (check the Z-Wave association section).

If SW1 is configured as a switch :

• To change the switch position once: send a command to the associated devices of groups 4 and 5 (check the Z-Wave association section).

If SW1 is configured as a switch-monument :

• When switching to Close switch memory contact: send a command to associated devices of associated groups 4 and 5 (check the Z-Wave association section) according to the switch status.

• Switching to an open switch memory contact: send a command to the associated devices of the 4th and 5th associated groups (check the Z-Wave association section) according to the switch status.

A switch/button is connected to input terminal SW2.

If SW2 is configured as a push button :
Scene number = 0X02

• Short press : Sends a message about the central scene “Key pressed 1 time=0x00” with scene number 0X02 and sends a command to associated devices in associated groups 6 (see section Z-Wave association ).

• 2x short press : Sends the central scene message “Key pressed 2 time=0x00”.

• Press and hold : The central scene message “Key held down =0x02” is sent and the command is sent to the associated devices belonging to the associated group 7 (see the Z-Wave association section).

• Release : The central scene message “Key released =0x01” is sent and the Send command is sent to associated devices in the associated group 7 (check the Z-Wave association section).

If SW2 is configured as a switch :

• To change the switch position once: send a command to the associated devices of groups 6 and 7 (see the Z-Wave association section).

If SW2 is configured as a switch-monument :

• Switching to Close switch memory contact: send a command to associated devices of groups 6 and 7 (check the Z-Wave association section) according to the switch status.

• Switching to open switch memory contact: send a command to associated devices of associated groups 6 and 7 (check the Z-Wave association section) according to the switch status.

A switch/button is connected to input terminal SW3.

If SW3 is configured as a push button :
Scene number = 0X03

• Short press : Sends a message about the central scene “Key pressed 1 time=0x00” with scene number 0X03 and sends a command to associated devices in associated groups 8 (see section Z-Wave association ).

• Press briefly 2 times : The central scene message “Key pressed 2 times=0x00” is sent.

• Press and hold : The central scene message “Key held down =0x02” is sent and the command is sent to the associated devices belonging to the associated group 9 (see the Z-Wave association section).

• Release : The central scene message “Key released =0x01” is sent and the Send command is sent to associated devices from the associated group 9 (see the Z-Wave association section).

If SW3 is configured as a switch :

• To change the switch position once: send a command to associated devices in associated groups 8 and 9 (see section Z-Wave association ).

If SW3 is configured as a switch-memory :

• Switching to Close switch memory contact: send a command to associated devices of groups 8 and 9 (check the Z-Wave association section) according to the switch status.

• Switching to an open switch memory contact: send a command to associated devices in associated groups 8 and 9 (check the Z-Wave association section), according to the switch status.

A switch/button is connected to input terminal SW4.

If SW4 is configured as a push button :
Scene number = 0X04

• Short press : Sends a message about the central scene “Key pressed 1 time=0x00” with scene number 0X04 and sends a command to associated devices in associated groups 10 (see section Z-Wave association ).

• 2x short press : Sends the central scene message “Key pressed 2 time=0x00”.

• Press and hold : Sends a central scene message “Key held down =0x02” and sends a command to associated devices in associated group 11 (see section Z-Wave association ).

• Release : The central scene message “Key released =0x01” is sent and the Send command is sent to associated devices in the associated group 11 (check the Z-Wave association section).

If SW4 is configured as a switch :

• To change the switch position once: send a command to associated devices in associated groups 8 and 9 (see section Z-Wave association ).

If SW4 is configured as a switch-monument :

• When switched to Close switch memory contact: send a command to associated devices in associated groups 10 and 11 (check Z-Wave association section), depending on the switch status.

• Switching to an open switch memory contact: send a command to associated devices in associated groups 10 and 11 (check the Z-Wave association section), according to the switch status.
